제품소개
Electrical Production
7/17AM

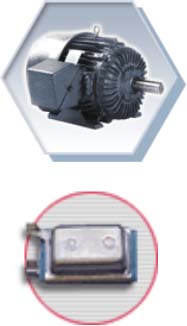

용도 및 기능 Applications
- 모터, 안정기, 온열매트, 돌침대, 전동공구, 판넬, 마사지기 등 온도조절 정밀도가 높은 제품으로서 전류, 온도로 제품을 보호한다.
- 최대접점 정격전류 : 22A, 115VAC/8A, 277VAC
6AP
용도 및 기능 Applications
- 6AP는 Klixon 바이메탈 snap action DISC의 동작을 기본으로 한 자동차 전장용의 모터 보호기 이다.
- 6AP는 전류와 열에 민감하게 동작하여 전원을 차단하여 Motor의 손상을 방지하는 것으로 12V(승용) 범위 뿐만 아니라, 24V(상용)에 Window Motor, Front Wiper Motor, Rear Wiper Mptor, Sunroof Morot Seat Adjust Motor, Door Lock 등에 전세계적으로 다양하게 적용을 하고 있다.
- 정격전압 : 15Vdc/30Vdc 전류범위 : 3A~40A 온도범위 : 100℃~170℃
셀프 홀드 모터 보호장치 (Self-Hold Motor Protector)
- 회전 부품에 자유로운 접속 적용을 위한 높은 레벨의 안정성 제공
- 모터 보호 기능의 토털 비용을 최소화
- 개별적으로 조정되는 온도
- 스냅 - 동작 디스크와의 신뢰성 있는 개폐
- 긴 수명의 반복 가능한 온도 성능
- 전류 - 민감한 온도
적용
8CM L/H Motor Protector는 믹서기 믹서(Stand up type), 쥬서기 등을 위한 홈 가전 모터에 적용, 사용된다.
Electrical Protection
Thermostats and motor protectors
-
2MM Series
Motor protector to meet almost any requirement of protection in a wide range of small motors, small transformers, solenoids etc.
-
15AM Series
The 15AM motor protector is designed to provide locked rotor and overload protection in a wide variety of motors for industrial and domestic appliances.
-

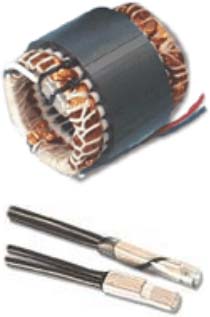

3MP/3MPSH/7MP Series
Off winding protectors for universal motors, small dimensions, flexible, terminal and self-hold configurations.
-
HM Series
HM series are single phase hermetic motor protectors suitable for HVAC compressor controls.
-
20413/20600 Series
Fixed temperature thermostats designed for applications where space, capacity and ease of assembly are important production factors.
-
YS11/YS7 Series
Off winding motor protector for small motors and batteries.
-
4TM Series
Plug-on thermal motor protector for compressors. Protects compressors for refrigerators, freezers, dehumidifiers, water coolers, vending machines.
-
8EA Series
Solid State PTC Motor starter. A low-cost alternative to electro-mechanical relays, performs the PTC (positive temperature coefficient) solid-state starter function.
-
TH10 Series
The TH10 temperature cut-out was developed to respond to the need of increasing power of heating and personal care appliances.
-
MA10 Series
The MA10 is a temperature-sensitive safety cut-out for applications like electric room heaters, hair dryers and curlers.
-
1NT/3NT Thermostats
Small and easy to mount, reliable, high temperature thermostats, widely used in many industrial applications as a regulating switch and over temperature control.
-
5003 Series
The 5003 series is a positive snap action, single pole/single throw, bimetallic thermostat which provides accurate and reliable sensing.
-
Phenolic Series
Equipped with a bimetallic snap acting disc, on which the contacts are mounted, and through which the current flows.

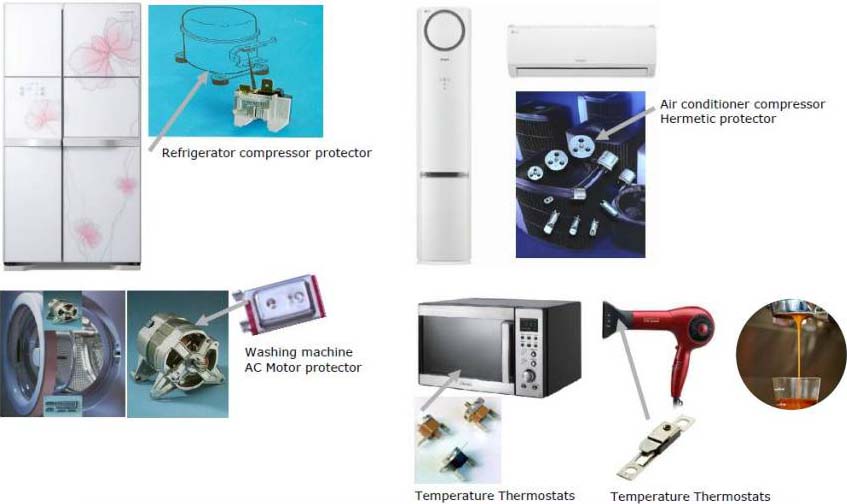

AC Motor & Lighting Controls
- AC Motor over-current & over-heating protection
- AC Pump over-current protection

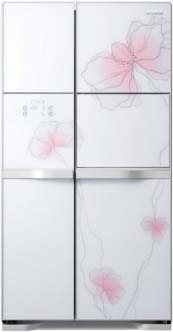

Major Home Appliance (Refrigeration)
Motor Protector
Motor Starter
Motor Protector Starter Combo
Small Appliance Industrial Lighting
Thermostats and Motor Protectors
Thermal Cut out
Thermostat
Thermal Motor Protector (MP Series)

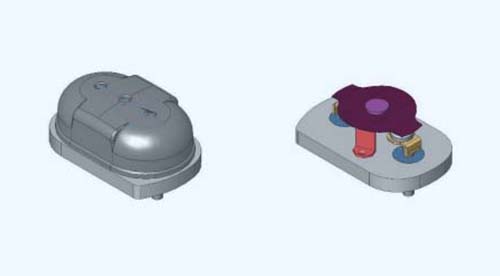

Single Phase Motor Protectors
Product Series
| Compressor Target | Recip & Scrolls | High Side Rotary | ||
|---|---|---|---|---|
| LRA Range | 90-165 | 40-120 | 30-70 | 10-50 |
| Application Range(Hp) | 2-6 | 1-5 | 1-2.5 | 0.5-1.5 |
| 95% Reliability | 7K cycles @ 165A | 10K cycles @ 100A | 10K cycles @ 60A | 10K cycles @ 50A |
| Termination Type | Quick connects Wire leads + sleeve |
Quick connects Wire leads + sleeve |
Wire leads + sleeve |
Wire leads + Sleeve Cluster Block |

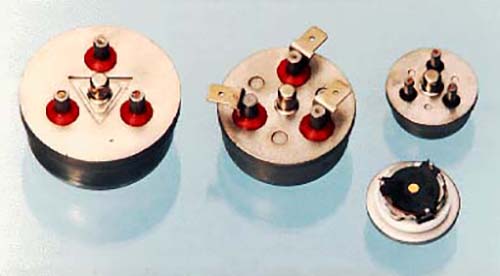

3 Phase Hermetic Protectors
Commercial A/C Compressor Applications
- Hermetic for internal mounting
- Options for high side applications
- Covers up to 15HP
- Voltage ratings: 230 Vac to 575 Vac
- UL, ENEC, CQC (TI China) approved
- Mfg sites in Mexico, China
