SSR (Solid State Relay)

PM panel mount

  • EL series

    Mini-puck solid state relay.
    Ratings of up to 30 Amps @280 VAC or 20 Amps @ 100 VDC.

  • NOVA22 PM67 series

    67.5mm 3-phase solid state relay Ratings from 35 up to 75 Amps per phase @ 600 VAC.
    Optional Over Temperature protection.

  • Series 1

    Crydom's signature family of solid state relays.
    Ratings from 10 to 125 Amps @ 24-280 VAC or 48-530 VAC.

  • NOVA22 PM22 series

    Half-puck solid state relay Ratings of 25, 50 and 95 Amps @ 660 VAC.

DIN din rail mount

  • SeriesOne DR

    Compact solid state relay.
    Ratings of 3 to 12 Amps @280 VAC/600 VAC or 3 to 24 Amps @ 100 VDC.
    Class I, Div 2 rated, for use in hazardous locations.

  • NOVA22 DR22 series

    22.5mm solid state relay.
    Ratings of 20, 30 and 35 Amps @ 48-600 VAC or 1-200 VDC.
    Available in contactor or relay configuration. Available with back-to-back SCR or cost- effective TRIAC output.

  • NOVA22 DR67

    67.5mm 3-phase solid state relay Ratings from 25 up to 75 Amps @ 600 VAC.

PCB pcb mount

  • ASO series

    Mini-SIP solid state relay.
    Ratings up to 2 Amps @ 12-280 VAC.
    DC control voltage.

  • CX series

    SIP solid state relay.
    Ratings of 5 Amps @ 12-280 VAC or 48-660 VAC.
    AC or DC control voltage.

  • MP series

    SIP solid state relay.
    Ratings up to 4 Amps @ 280 VAC or 3 Amps @ 60 VDC.
    DC control voltage.

PI plug-in mount

  • CN series

    Thin SSR for high density applications.
    Ratings of 2 Amps @ 280 VAC or 6 Amps @ 100 VDC.
    Pluggable into standard relay sockets.

  • ED Series

    Industry standard plug- in package.
    Ratings of up to 5 Amps @ 24-280 VAC or 10 Amps @ 1-100 VDC.
    DIN Rail or PCB mount sockets available.

SSR Application

Food Equipment
Plastic Machinery
HVAC
Transportation
  • Industrial OEMs : Plastic Machinery, Packaging and Material Handling Equipment, Industrial Ovens, Pumps
  • Food & Beverage : Baking Ovens, Refrigeration, Food Processing Equipment
  • Building Equipment : HVAC&R, Lighting, Access Control
  • Energy & Infrastructure : Renewable Energy, Water and Waste Water Treatments
  • Transportation : Agricultural Machinery, Railway Vehicles (Tested for Shock and Vibration Resistance up to 50g and 500 Hz, per IEC 60068-2)

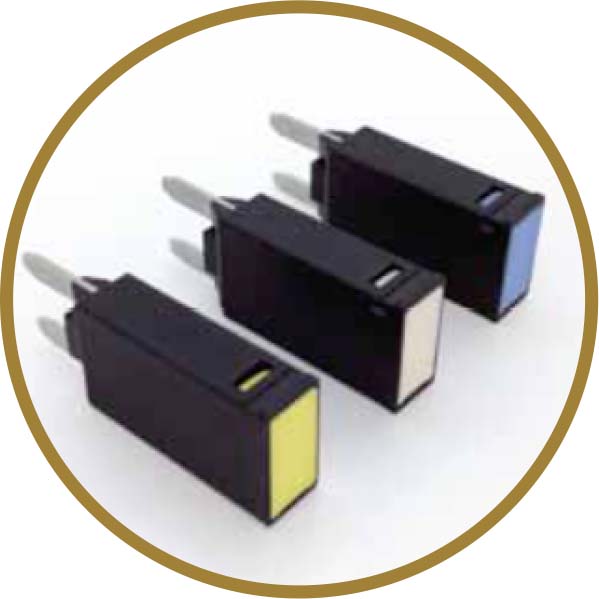

MINI 100 CIRCUT BREAKER

Introduction

The MINI 100 Series circuit breaker is designed as a drop-in replacement for mini type fuses for use in critical safety circuits, or where an automatic resettable protection is needed. The MINI 100 is available in ratings up to 30 amps with a color tap cover. With an exceptional history of more than 90 years, Sensata Technologies is leading supplier of sensors and bimetal switches.

Overview

Sensata Technologies MINI 100 Footprint Series of circuit breakers are designed for wiring harness protection in 12V/24V DC automotive, agriculture, marine, and robotic applications. The MINI 100 is an ideal protection device to guard against momentary overloads. The MINI 100 can be mounted in a 280 and/or ATM footprints also known as MINI minifuse location. Optional mounting needs can be addressed by contacting Sensata Technologies. This bimetallic device is sensitive to both overcurrent and over-temperature fault conditions. This device is especially designed with a Secondary Circuit Protection that uses a fusible link as backup protection for end of life failure modes of the device. Sensata Technologies is an ISO and QS registered company providing world-class quality products.

Benefits
  • Includes an internal Secondary Current Protection (SCP) option
  • The SCP is designed for short circuit protection similar to a fusible link with the benefit of a resettable circuit breaker feature.
  • 24V and SAE Type 3 versions under development. Contact Sensata Technologies for further information.
  • Includes a robust plastic design cover with optional cap colors for easy part identification
  • Cooler terminal and cover temperature design
  • Exceeds SAE J553 requirements

SPECIFICATIONS

Nominal Operating Voltage DC 14V*, DC 24V
Voltage Drop at Operating Current 150 mV Max
Nominal Current Rating 5 to 30 Amps @ 25 C
Operational Temperature Range 40°C to 85°C (Nominal Temperature of 25°C)
Polarity Independent of Circuit Polarity
* The circuit breaker must operate within the range of 9.0 to 16.0 Volts DC. Nominal intended voltage is 14.0 volts DC. Unless otherwise specified, testing by customers should be conducted at 14V DC.

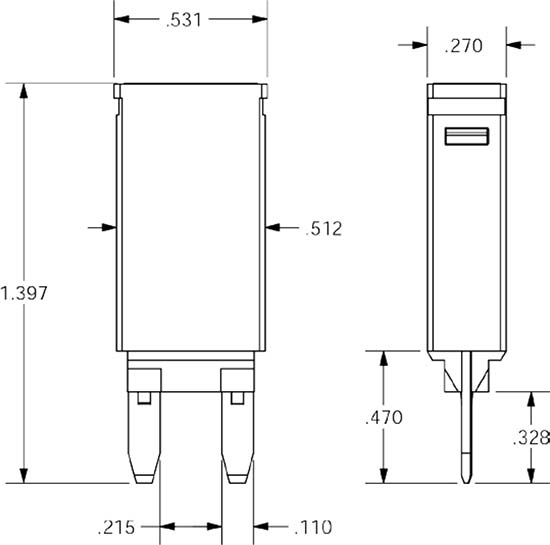

DIMENSIONS Dimensions in mm [Inch]

TECHNICAL SPECIFICATIONS

Current Re-Rating with Ambient Temperature
Nominal Current Rating (A) Color Coding Derated Currents @ Ambient Temperatures
Top Cap Cover -40°C 25°C 85°C
5 Tan 6.26 5 3.5
7.5 Brown 9.4 7.5 5.25
10 Red 12.5 10 7
15 Blue 18.5 15 10.5
20 Yellow 25 20 14
25 White 31 25 17.5

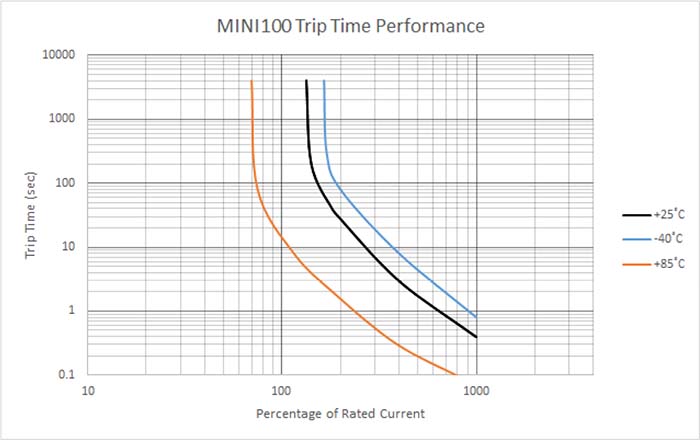

Curves

These curves are to be used only as a guide in selecting a protector for a particular application. Final trip times are dependent upon the type of application and are the responsibility of the application engineer to determine through appropriate testing.
